Angle arm screen printing machine: an efficient operator in the field of flexible printing
- Share
- Issue Time
- Jul 30,2025
Summary
In the precise realm of flexible printing, the oblique-arm screen printing machine, with its unique structural design and high-performance capabilities, has emerged as the core equipment for printing various soft materials. Whether it's plastic film, textile fabric, or curved plastic parts, this printing machinery, which combines flexibility and stability, is redefining the production efficiency standards for flexible printing with its multi-dimensional performance advantages.

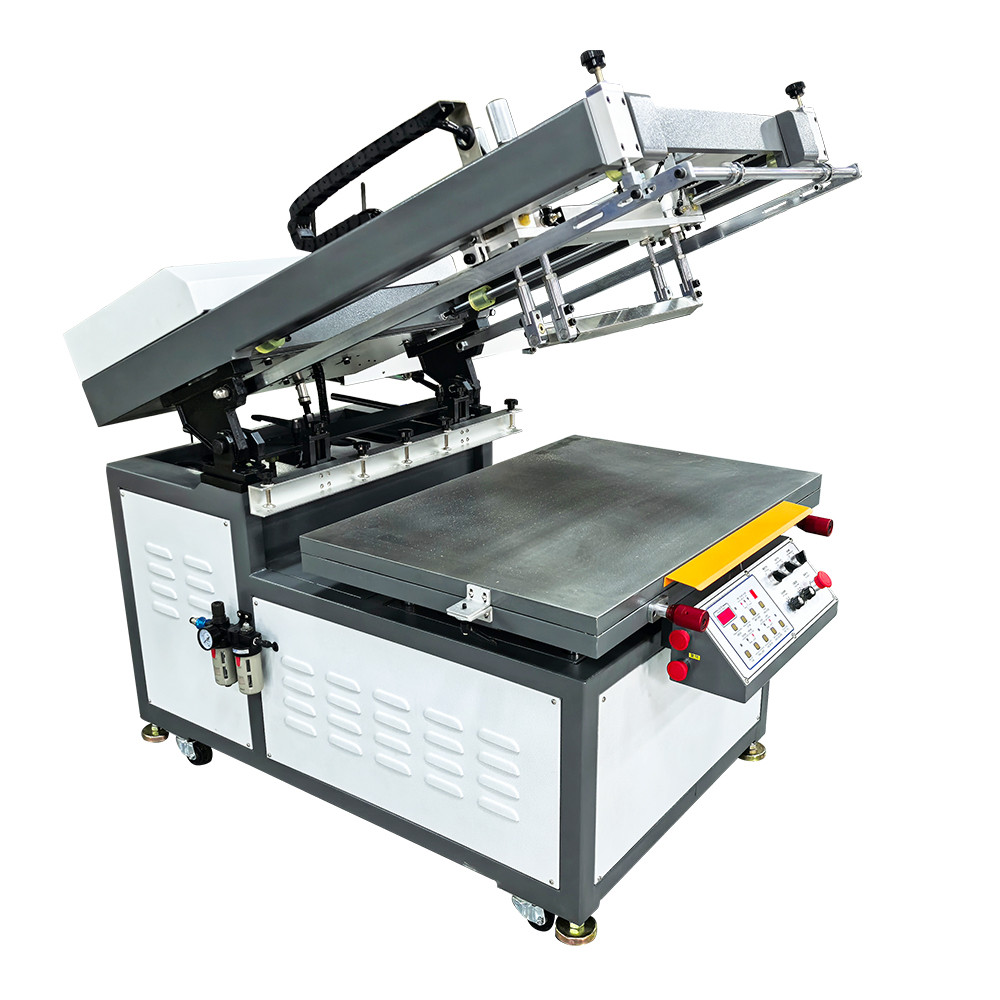

The mechanical design of the inclined arm structure is the foundation for efficient operation. The inclined arm component forged with high rigidity aluminum alloy can achieve multi angle rotation from 0 to 90 degrees, and with the precision transmission of linear guide rail, the positioning error of the printing head is controlled within 0.02 millimeters. This design allows the device to easily handle irregular surface printing - when processing curved plastic parts, the diagonal arm can automatically adjust the printing angle according to the curvature of the workpiece, ensuring that the screen and substrate always maintain the best contact state, and the scrap rate is reduced by more than 60% compared to traditional equipment.
The leap in printing efficiency is more reflected in automation integration. The oblique arm screen printing machine equipped with a visual positioning system can achieve high-speed printing of 300 times per hour, with a printing accuracy of ± 0.05 millimeters. In the roll printing mode, the equipment uses tension closed-loop control technology to control the material stretching amount within 0.1%, combined with automatic ink scraping and ink return devices, to achieve a seamless operation from feeding, printing to drying throughout the entire process. The practice of a packaging printing factory shows that after introducing diagonal arm screen printing machines, the daily production capacity of flexible packaging has increased from 8000 pieces to 12000 pieces, and labor costs have been reduced by 30%.
Strong adaptability is the key to becoming a versatile player. By quickly replacing the screen and scraper components, the equipment can complete the printing switch from PET film to silicone products within 5 minutes. For flexible materials of different thicknesses, the inclined arm pressure adjustment system can provide precise pressure output of 5-50N, which not only avoids the deformation problem of thin materials, but also ensures the uniformity of ink layer in thick material printing. The feature of "one machine for multiple uses" eliminates the efficiency loss of equipment switching for small batch and multi variety flexible printing orders.
In today's transition from flexible printing to high-precision and fast delivery, diagonal arm screen printing machines have broken the efficiency bottleneck of traditional printing with structural innovation, becoming an efficient link between design creativity and mass production, and continuously promoting the upgrading of printing processes in packaging, electronics, textiles and other fields.
