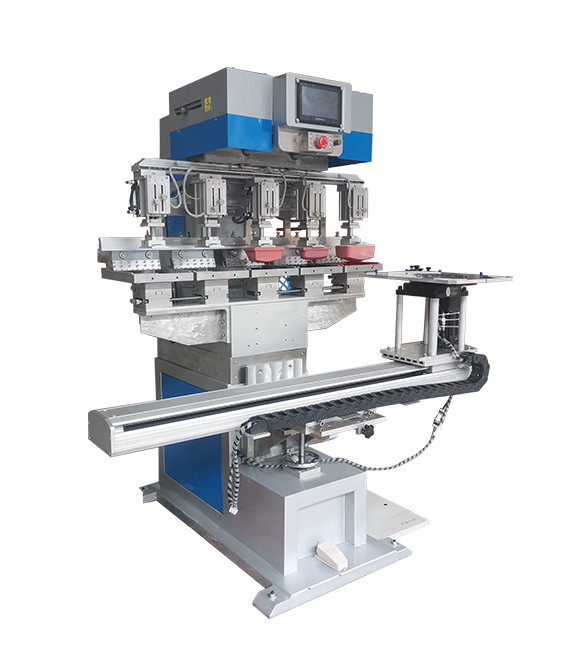

Five color servo pad printing machine: convenient CNC operation, preferred for multi-color printing of large workpieces

Five color servo pad printing machine: convenient CNC operation, preferred for multi-color printing of large workpieces

Summary

Five color servo pad printing machine: In the field of multi-color printing for large workpieces, the convenience of operation and the adaptability of the equipment to complex printing requirements are crucial. The five color servo pad printing machine, with its intelligent design of CNC system, greatly simplifies the operation process and meets the strict requirements of multi-color printing for large workpieces with powerful performance, becoming the preferred equipment in the industry. ​

Five color servo pad printing machine: convenient CNC operation, preferred for multi-color printing of large workpieces
The convenience of numerical control operation is reflected in the intelligence of human-computer interaction and parameter control. The device is equipped with a 10.1-inch touch screen and a graphical user interface. Workers only need to click on the icon to complete the printing parameter settings, without the need to memorize complex codes. The system has a built-in process parameter database and pre-set 50 commonly used printing schemes for large workpieces of different materials (metal, plastic, ceramic) and sizes, covering key parameters such as ink type, glue head pressure, printing speed, etc. New employees can operate independently after one hour of training. For example, when printing multi-color labels for large plastic water tanks, the operator can call the "curved plastic part" preset scheme and simply adjust the printing position coordinates. The equipment will automatically match the optimal parameters, and the entire setup process will not exceed 3 minutes. In addition, the CNC system supports remote control and diagnosis, and technicians can assist in solving operational problems and reducing downtime through a mobile app. ​
The adaptability of multi-color printing for large workpieces forms a synergistic advantage between CNC systems and mechanical structures. The printing worktable of the equipment adopts CNC servo drive, which can achieve precise movement of X and Y axes ± 0.01mm, with a maximum stroke of 2.5 meters × 1.5 meters, and can easily carry large workpieces with a length of more than 2 meters and a weight of 500kg. In multi-color printing, the CNC system uses laser positioning compensation technology to correct the small deformations caused by the weight of large workpieces in real time, ensuring that the printing deviation of the five color pattern does not exceed 0.05mm. For example, when printing three color operation instructions on the shell of a large machine tool, even if there is a 0.2mm flatness error in the workpiece, the system can dynamically adjust the position of the glue head to ensure accurate alignment of the pattern edges. ​
The efficient mass production capacity further consolidates its preferred position. The CNC system supports offline programming, which allows for pre planning of printing paths for large workpieces on a computer, and then importing them directly into the equipment for execution, saving on-site debugging time. For large workpieces that require repeated printing, the system can remember printing coordinates and parameters, and can be started with one click during secondary production, resulting in a 40% increase in printing efficiency compared to traditional equipment. The equipment also has an automatic color changing function, reducing the switching time of five color ink to 15 seconds. With the continuous feeding mechanism, it can achieve multi-color printing of 500 large workpieces in a single shift of 8 hours, meeting the needs of mass production. ​
From the shell identification of heavy machinery to the pattern printing of large containers, the five color servo pad printing machine solves the problem of complex operation and insufficient accuracy of traditional equipment for enterprises with the convenience of CNC operation and the adaptability of multi-color printing for large workpieces, becoming a reliable choice to improve production efficiency and printing quality. Convenient control operation, preferred for multi-color printing on large workpieces
