Model
TX-800SA

Item specifics

Max printing area
200*700mm
Substrate Diameter
≤180mm
Printing Speed
200pcs/hour
Max screen frame
400*1000mm
Max Printing length
200mm
Machine Weight
332kg
Power Supply
220V,50/60/Hz/100W
Machine Dimension
1450*950*1850mm
Air pressure
4-6kgf/cm2
Application Areas
Automobile piston

Review

Description

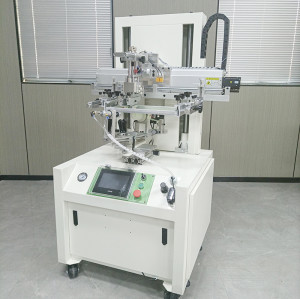

Introduction  TX-800SA Servo curved screen printing machine
This servo curved screen printer is specially designed for printing wear-resistant coatings on large vehicle pistons.

Main parameters

Model :  TX-800SA
Max Printing area:  200*700mm
Air pressure:  5 bar
Rated voltage/Power: 220V/50HZ/1000W
Max printing speed:  200(pcs/h)
Max screen frame:  400*1000mm
printing size:  Φ180*300mm
Printing length:  ≤250mm
Dimension Size : 1450*950*1850mm
Gross weight : 332(KG)



Main performance

① PLC controls the operation of each function, with high degree of automation and simple and convenient operation.
② Built-in four-digit automatic counter.
③ Automatically scrape ink, return ink, lift and lower the printing plate, which not only simplifies the operation but also ensures the stability of printing quality. ④ The printing stroke and speed are adjustable to meet different printing requirements.
⑤ Automatically balanced scraper to ensure balanced printing pressure.
⑥ The workbench and screen frame can be fine-tuned front and back, left and right, up and down, with high printing accuracy, convenient and fast adjustment. ⑦ The scraper part can be lifted independently, and the screen frame can be replaced and cleaned easily and conveniently.
⑧ Lifting servo motor control to achieve one-button adjustment of the screen spacing.
⑨ The left and right motors and the product rotation motor are servo-driven, which is more accurate.
Application    TX-800SA  Servo curved screen printing machine
