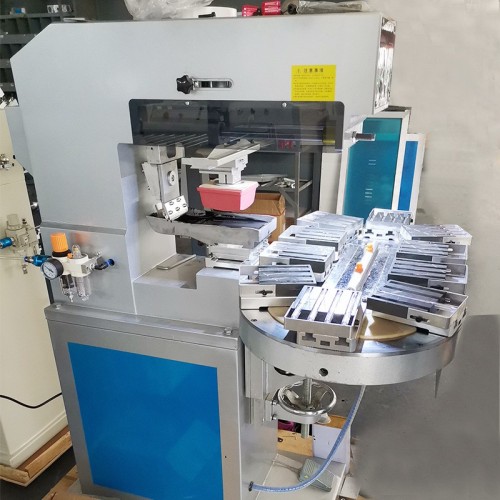

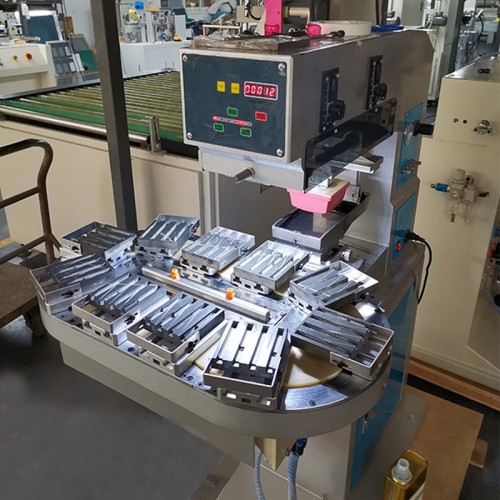

Semi-Automatic Two-color Rotary Ink Pad Printing Machine TXZ－250-100 For Remote Control
- Model
- TXZ－250-100
Item specifics
- Operation
- Semi-Automatic
- No. of Color
- 2 Color
- Plate size
- 150*100mm
- Ink cup Dia
- 90mm
- Power
- 220V/50HZ/50W
- Max Printing Speed
- 1200pcs/hr
- Air Pressure
- 6 Bar
- Machine Dimension
- 1220*950*1380mm
- Machine Weight
- 255kg
Review
Description
Application
Two-color pad printing machine is electronic, plastics, toys and other products for monochrome printing machinery, such as cell phone button, golf ball, toys, pens, mouse, electronic products, handicrafts, etc., for a variety of printed materials For example: metal, glass, ceramics, plastics and so on. Printing area is relatively small plane, and the irregular surface of the product arc printing. Simple operation, easy maintenance and repair, lower prices for most used by customers
Product Parameters
Operation: Semi-Automatic
No. of Color: 2 Color
Plate size: 150*100mm
Ink cup Dia: 90mm
Max Printing Speed: 1200pcs/hr
Power Voltage: 220V/50Hz
Power Consumption: 150W
Air Pressure：6 Bar
Machine Dimension：1220*950*1380mm
Machine Weight：255kg
Main Features
·Advanced computerized system control
·pneumatically driven ，can adjust the movement speed of each part
·Built-in LED digital counter
·Light-weight, strong machine frame
·Ink cup, work table and pads are independently adjustable for easy color registration
·Speed, pad and printing stroke are easily adjustable for different printing requirements
·Ink cup and pads are easily installed and dismounted for quick cleaning
·The ink cup promote by cylinder ,can be slide more smoothly
Printing sample
