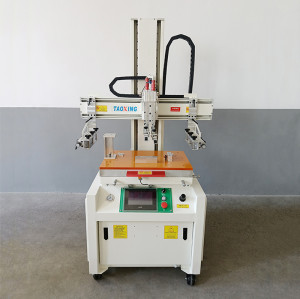

Electromagnetic Adsorption Flat Screen Printer for Automobile Cylinder Head Gasket

Model: TX-6090GJD

Item specifics

Printing color: 1 color

Operating mode: semi-automatic

Printing speed: 1000pcs/h

Printing size: 500*800mm

Table Size: 600*900mm

Max Frame Size: 800*1200mm

Max printing speed: 1000pcs/h

Printing Thickness: 30mm

Dimension: 1460*1150*1650mm

Weight: 50KG

Review

Description

Introduction Adsorption Flat Screen Printer for Automobile Cylinder Head Gasket

Fully automatic CCD screen printing machine

Application:

Be applied to the flat printing for Iron cylinder gasket and metal nameplate, stickers, credit card, It is also applicable to the flat printing such as golden and silver cardboard ,metal sheet which have high requirement in overprinting.

Main performance

1.Vertical structure with the motor driven printing plate goes up and down vertically, and the motor driven print head moves left/right.

2. Single chip controlled circuit, printing and plate goes up and down using independent driving source.

3. Pneumatic controller controls the printing knife moves up and down, photocell eye controls the stroke, which is independent to tune.

4. Set manual/semi-automatic /automatic three modes , the break time of printing is digital controlled.

5. Independent designed head rising and down setting, makes it convenient to clean the scraping blade/reclaiming blade、screen plate during loading and unloading.

6. Double guide column master the clamps arm, and install the adjusting device to adjust the distance between plates at the same time, which is convenient to tune.

Specification

Model			TX-6090GJD
Table Size			600x900mm
Substrate Thickness			0-25 mm
Max Printing Area			500×800mm
Printing speed			1000 pcs/h
Maximum screen frame size			800*1200mm
Stacking Height			300mm
Worktable Displacement			±5mm
Power Consumption			380V/50HZ / 3.2KW
Printing pressure			4.0~6.0 kfg/c㎡
Machine Dimension			146011501650mm
Machine Weight			520KG
