Large Size Automatic Screen Printing Machine for Yoga Mat Carpet

Large Size Automatic Screen Printing Machine for Yoga Mat Carpet

Model: TX-90180ST

Item specifics

Printing color: 1 color

Operating mode: semi-automatic

Printing speed: 1000pcs/h

Printing size: 900*1800mm

Table Size: 1000*2000mm

Max Frame Size: 1200*2400mm

Printing Thickness: 50mm

Dimension: 2650*1500*1740mm

Power: AC380V / 5.7KW

Weight: 680KG

Review

Description

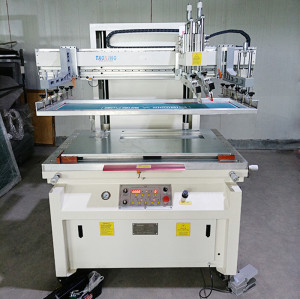

Introduction TX-90180ST Semi-automatic Flat Screen Printing Machine

Fully automatic CCD screen printing machine

Application:

This semi-automatic flat screen printer is suitable for printing large-size products such as yoga mats and table mats.

Features

★Main performance

1.Vertical structure with the motor driven printing plate goes up and down vertically, and the motor driven print head moves left/right.

2. Single chip controlled circuit, printing and plate goes up and down using independent driving source.

3. Pneumatic controller controls the printing knife moves up and down, photocell eye controls the stroke, which is independent to tune.

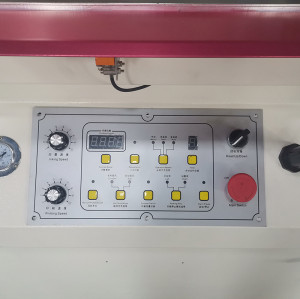

4. Set manual/semi-automatic /automatic three modes , the break time of printing is digital controlled.

5. Independent designed head rising and down setting, makes it convenient to clean the scraping blade/reclaiming blade、screen plate during loading and unloading.

6. Double guide column master the clamps arm, and install the adjusting device to adjust the distance between plates at the same time, which is convenient to tune.

Specification

Model			TX-90180ST
Table Size			1000*2000mm
Substrate Thickness			50mm
Max Printing Area			900*1800mm
Printing speed			1000 pcs/h
Maximum screen frame size			1200*2400mm
Stacking Height			300mm
Worktable Displacement			±5mm
Power Consumption			380V/ 50HZ / 5.7 KW
Printing pressure			4.0~6.0 kfg/c㎡
Machine Dimension			265015001740mm
Machine Weight			680KG
